Ice Depot – Commercial Ice Vending Machine (High Capacity) quantity

Description

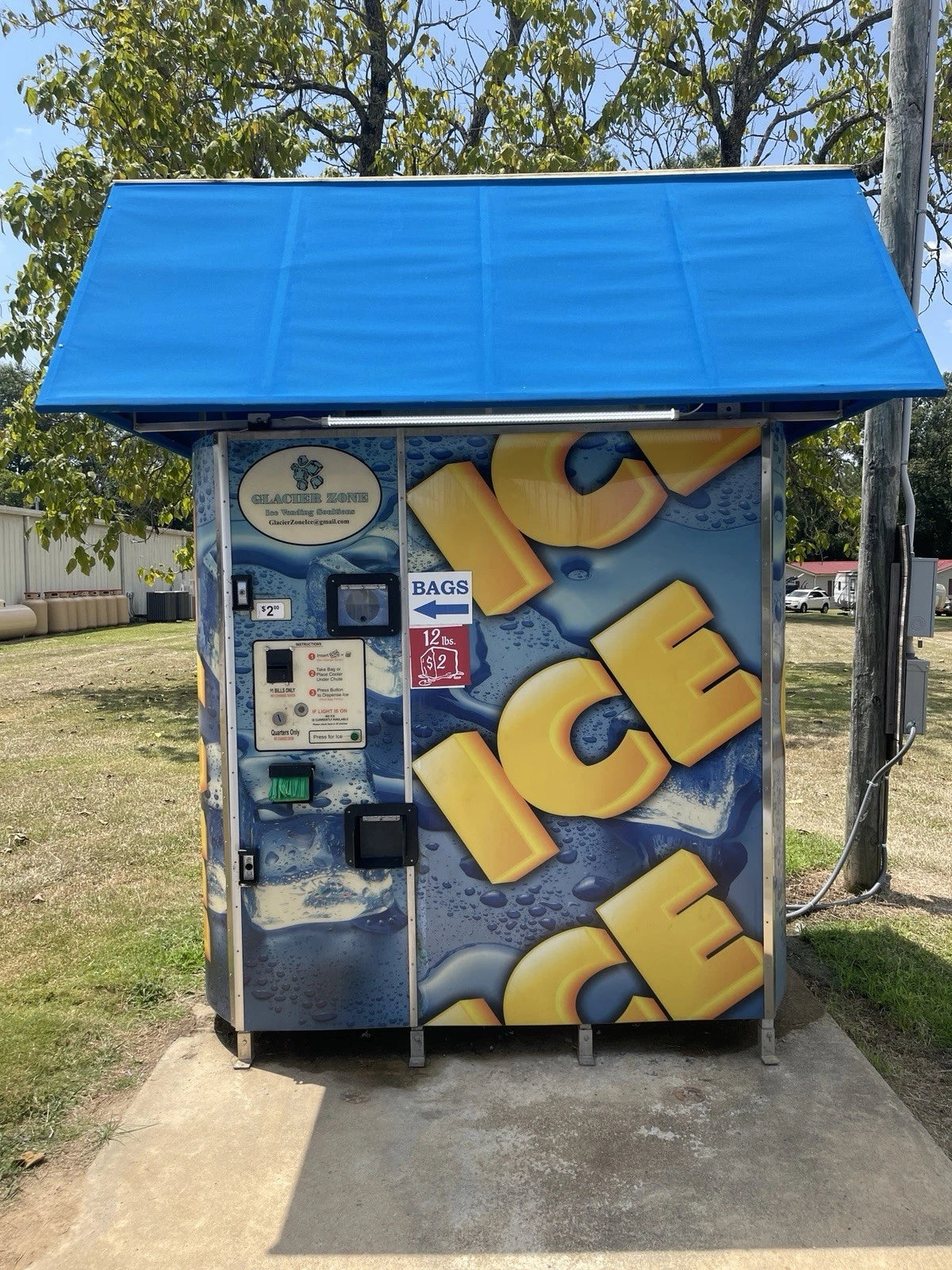

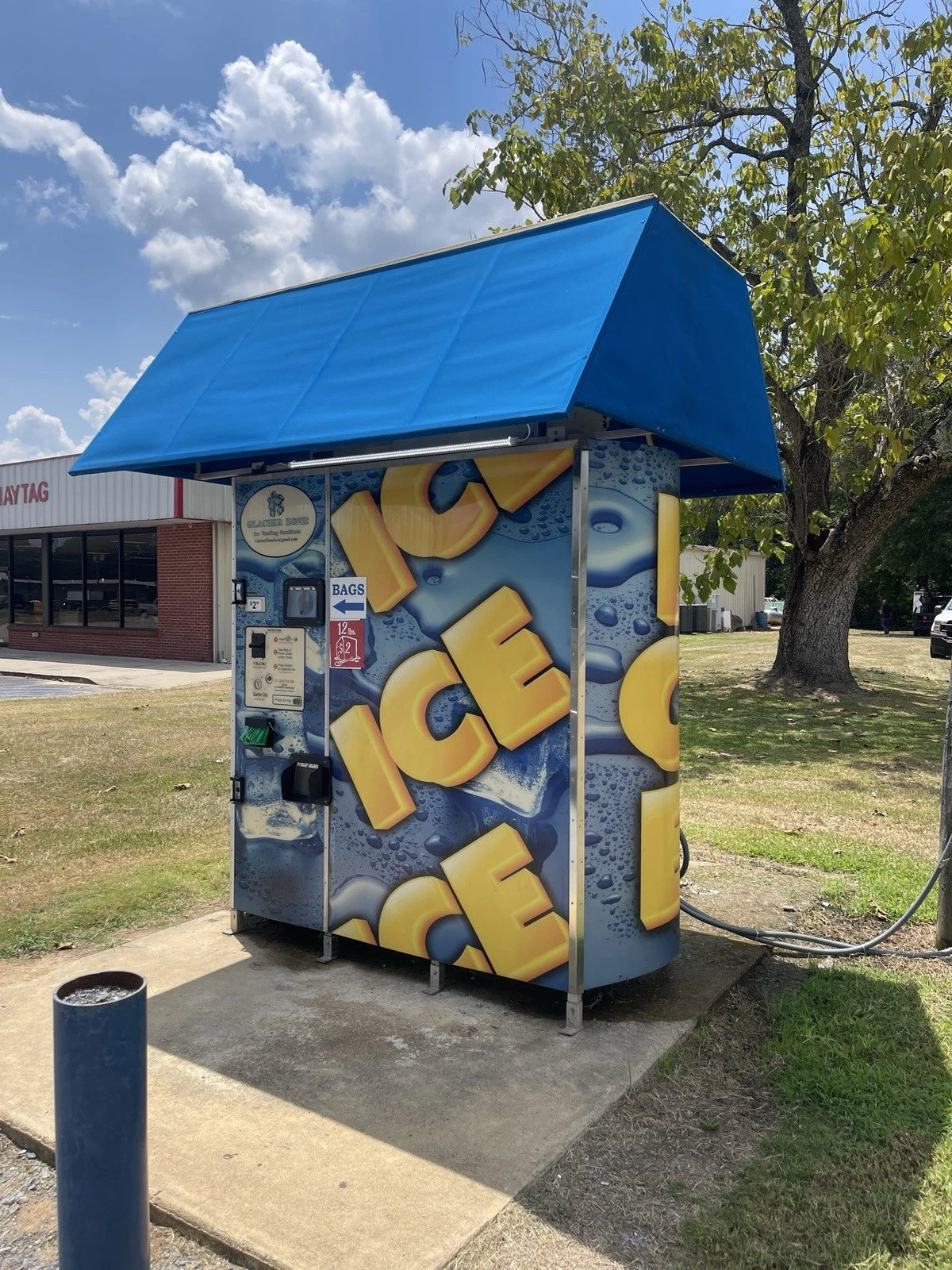

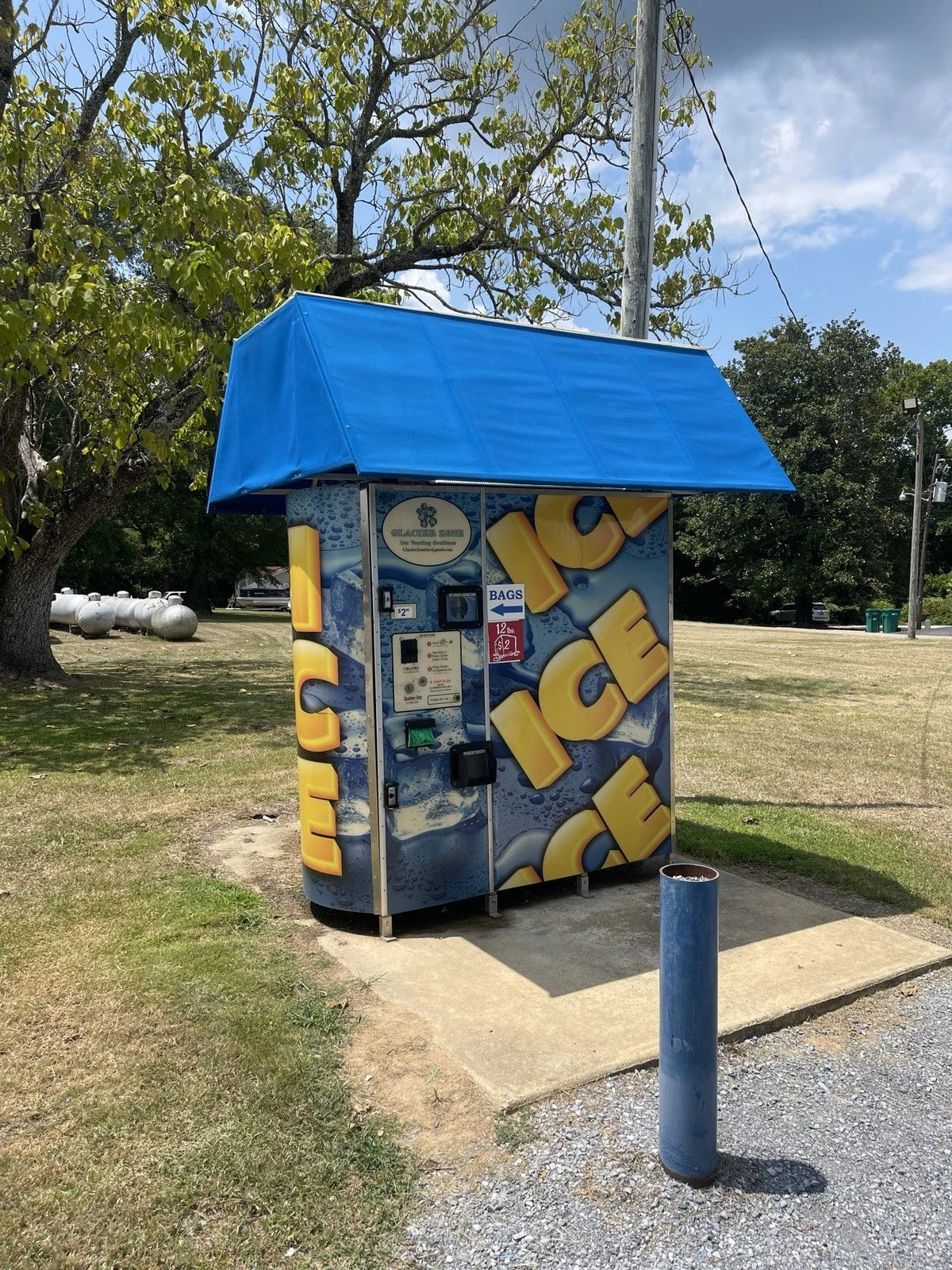

Ice Depot – Commercial Ice Vending Machine (High Capacity)
Product Overview
The Ice Depot is a commercial-grade ice vending machine engineered for high-volume production and automated dispensing. This self-contained unit is designed for placement in retail locations fuel stations campgrounds and self-service facilities where reliable ice access is required. Constructed with food-grade materials throughout the machine integrates ice production storage bagging and payment processing into a single enclosure .
Key Features

High daily production capacity generates up to 450 kilograms (approximately 992 pounds) of ice per 24-hour cycle

Dual dispensing options provide both bagged ice and bulk ice retrieval through separate chutes

Multi-denomination payment system accepts bills coins and IC cards with change return functionality

Five-stage reverse osmosis filtration processes inlet water through sediment activated carbon and RO membrane stages

Food-grade stainless steel construction (grade 304) for all surfaces contacting ice or water

Automated bagging mechanism performs bag dispensing weighing filling and sealing without operator intervention

Remote monitoring capability allows GSM-based reporting and system controls

Automatic safety shutoffs engage when water supply is low ice storage is full or bags are depleted

Detailed Description
The Ice Depot functions as a fully integrated ice production and vending system. Water entering the unit passes through a multistage purification process before reaching the ice maker. The ice formation chamber produces uniform 22×22×22 millimeter cube ice which is transferred to an insulated storage bin . An internal auger system moves ice from storage to the dispensing mechanism as needed.
When a customer initiates a purchase the payment system validates currency and signals the control board to begin dispensing. For bagged ice orders the machine automatically positions an empty bag fills it to the programmed weight and heat-seals the bag before delivery to the customer. Bulk ice is dispensed directly through a separate chute into the customer’s container.
The cabinet features a front-door design that provides access to internal components for maintenance. A waterproof powder-coated steel exterior protects internal mechanisms from weather exposure when installed outdoors . The control system continuously monitors ice levels water input bag supply and payment processing to maintain operational status.
Technical Specifications

Specification
Detail

Model
JM450

Daily Ice Production
450 kg (992 lbs)

Ice Cube Dimensions
22×22×22 mm

Storage Capacity
High-capacity insulated bin (exact capacity varies by configuration)

Payment Acceptance
Bills coins IC card with change return

Filtration Stages
5-stage reverse osmosis system

Cabinet Dimensions
1200 mm W × 1000 mm D × 2200 mm H (47.2″ × 39.4″ × 86.6″)

Net Weight
500 kg (1102 lbs)

Cabinet Material
Waterproof steel with food-grade stainless steel interior surfaces

Electrical Requirements
Commercial power supply (specifications by configuration)

Water Connection
Standard inlet water line with filtration system

Operating Lifespan
8-10 years with regular maintenance

Certifications
CE compliant

Shipping Configuration
8 units per 20-foot container 16 units per 40-foot container

Filtration System Specifications
The integrated water purification system includes sequential filtration stages :

Stage 1: 10-inch 5-micron precision sediment filter

Stage 2: 10-inch bulk activated carbon filter

Stage 3: 10-inch sintered activated carbon filter

Stage 4: Reverse osmosis membrane (200 GPD / 750 liters per 24-hour capacity optional upgrade)

Stage 5: Post-activated carbon final polishing filter

All filtration components meet NSF standards for drinking water treatment .
Intended Use Applications
The Ice Depot is intended for commercial installation in the following settings:

Self-service retail locations requiring unattended ice sales

Fuel stations and travel centers

Campgrounds and RV parks

Marinas and boat launch facilities

Grocery store parking lots

Multi-unit residential developments with shared amenities

The unit operates continuously in outdoor or indoor environments and requires access to electrical service and potable water supply. Regular maintenance access is necessary for filter changes sanitation procedures and mechanical servicing.
Package Includes

Ice Depot JM450 commercial vending machine unit

Integrated multistage water filtration system

Bill and coin validator with change return mechanism

IC card reader (factory-installed)

Automated bagging mechanism with heat sealer

GSM remote monitoring module

Installation and operation manual

Starter supply of vending bags
